Self-adhesive Coil Winding Machine

Self-adhesive Coil Winding Machine

Self-adhesive coil winding machine is suitable for mobile motor pancake coils, IC card high and low frequency coils and other hollow coils. Automatic discharging, and continuous operation.

ONLINE CONSULTATION

product details

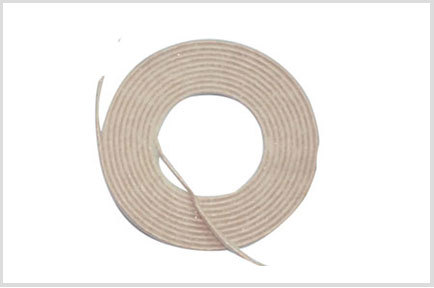

Product map

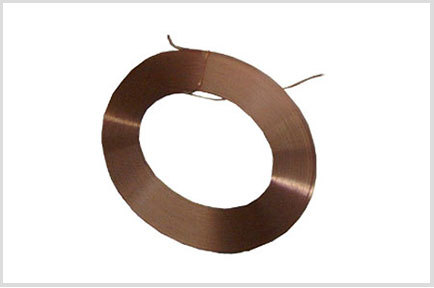

Product map

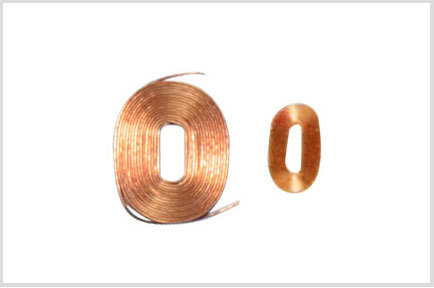

Product map

Advantages

  • 01

    Uses Panasonic PLC

  • 02

    S spindle winds and X spindle aligns wires.

  • 03

    Automatic discharging, and continuous operation

  • 04

    The touch screen can be implemented to modify the program, and easy to learn

  • 05

    Automatic take-up wire ends and wire head

Equipment parameters

  • Range of outer diameter of wire (mm)

  • Φ0.02~φ0.2

  • Application scope

  • Cell phone motor flat coil, audio coil, IC card high and low frequency coil and other hollow coils

  • Drive mode

  • 2-spindle servo

  • Revolving speed of principal spindle (rpm)

  • 3000rpm

  • Stop precision

  • ±1°

  • Maximum outer diameter of wire (mm)

  • Φ15

  • Precision of component width setting (mm)

  • ±0.01

  • Power of winding spindle motor

  • Servo 200W

  • Power of displacement-spindle motor

  • Servo 100W

  • Adhesion manner

  • Hot wind 1KW/ max400℃+±1°

  • Power voltage

  • AC220V (IPH)

  • External dimension

  • 680 (L) x 460 (W) x 1500 (H) mm
