Three Needle Stator Winding Machine

The three needle winding machine is used to form motor stator production line to realize the fully automated production of feeding, winding, arranging, winding transition, cutting the beginning and ending lines, and cutting the material; read the stator code before winding to realize the full tracking of the winding process Monitoring, traceable production.

ONLINE CONSULTATION

product details

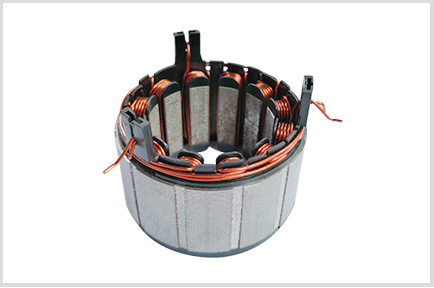

Finished-product-drawing

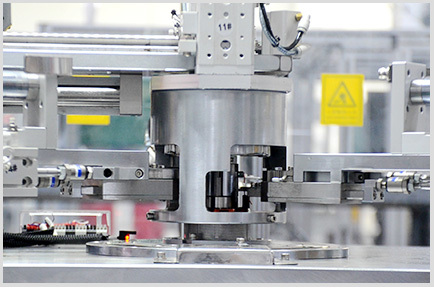

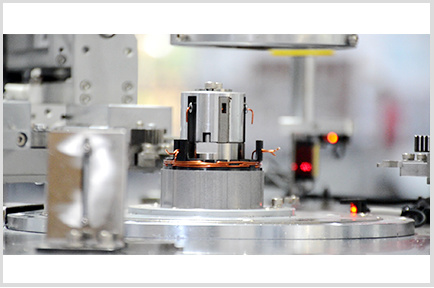

Local graph

Advantages

01

Stable operation, low failure rate, high grasping accuracy
02

Beautiful structure, low practical noise; multi-function, easy to install
03

Non-standard can be customized
04

Use the manipulator handling module to be responsible for the in and out of materials, with strong compatibility, convenient and stable debugging
05

The winding machine adopts three needle winding, and the winding head moves up and down on the inner circle of the stator to achieve precise winding of the stator.

Equipment parameters

Winding speed
72s/PCS

Applicable wire diameter
0.1mm-1.0mm

Winding method
Three-needle winding, winding with stator up and down

Scope of application
Brushless stator winding

Loading and unloading method
Fully automatic

Power supply
AC 220V 50HZ

Frame size
1840（L）*1500（W）*2400（H）mm

Power
10KW
