Reduction gearbox production line

Reduction gearbox production line is applied in vehicle area. The main process contains plate loading, bearing press-fit, gear installation, gear body loading, greasing, box body loading, box oil-sealing, bearing installation, Gearbox component combination, screwing, mark inspection, unloading, etc.
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Product details

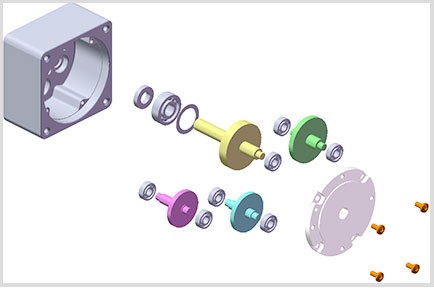

Split-graph

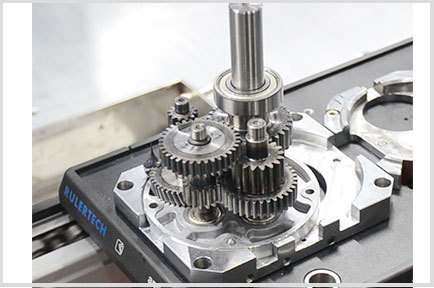

Finished-product-drawing

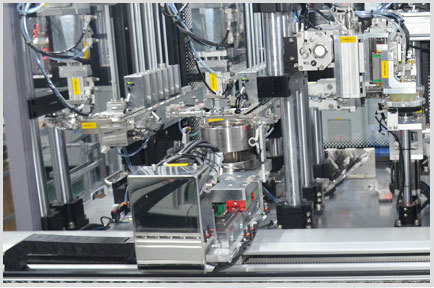

Local graph

Advantages

  • 01

    Configured with 3 types of screwdriver to screw different product.

  • 02

    Raw data and analysis results from the production process are stored

  • 03

    Reserve MES system interface for product traceability analysis

  • 04

    Configure the industrial control system to monitor the overall system operation status

  • 05

    Data collection, decentralization, analysis and preservation of the entire line

  • 06

    The device prompts various misoperations, bad states, etc. in real time

Equipment parameters

  • Efficiency

  • 15s /pcs

  • Voltage

  • Three-phase AC 380V 50HZ

  • Air pressure

  • 0.45-0.65MPa

  • Compatible product

  • 2 types

  • Power

  • All line about 140KW

  • Control Method

  • PLC + HMI

  • Physical dimension

  • 22(L)*2.5 (W)*1.8 (H)m
